TECHNOLOGY

We promise to give you clean and pure air.

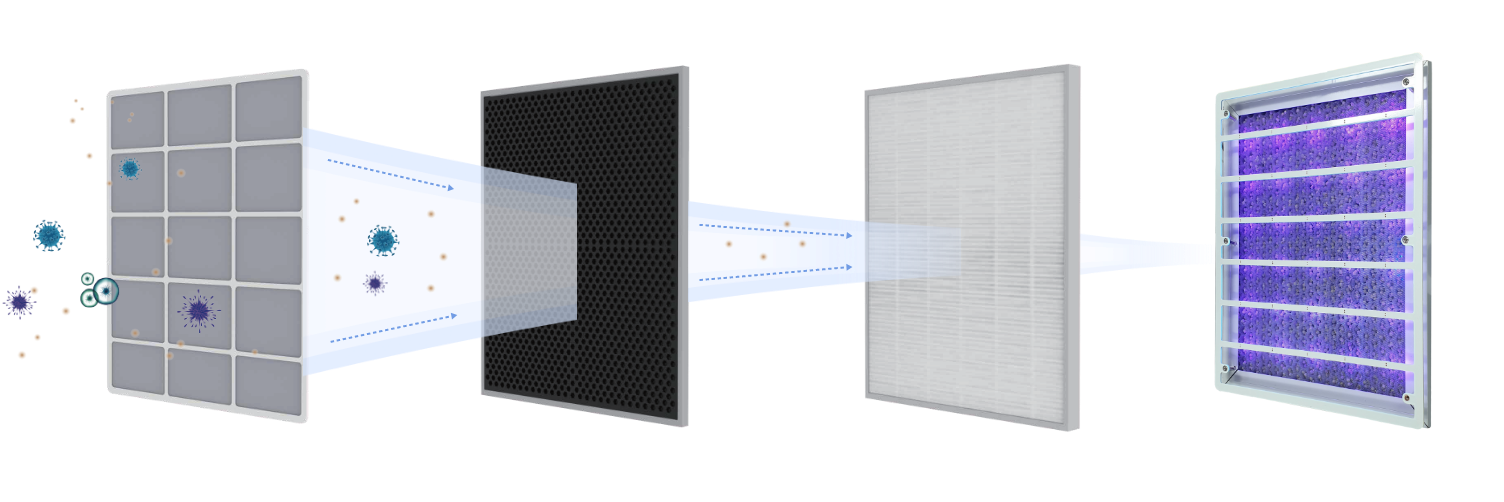

All-In-One Filter System

The combination of three filters and ion-cluster technology

An air purification system to remove ultrafine dust, harmful gas, virus and germs.

  • 01 STEP Washable Pre Filter

    It first filters large particles and floating matters.

  • 02 STEP High-quality Activated Carbon Filter

    It then filters formaldehyde, chemicals, and odors.

  • 03 STEP HEPA Filter

    The purifier filters fine particles of the size of PM2.5 / PM0.3~0.5 such as pollen.

  • 04 STEP Photocatalytic Filter

    The UV-LED sterilizes and removes germs (Colon Bacillus, Bacillus Pyocyaneus, Staphylococcus Aureus).
    (Testing institute: Korea Conformity Laboratories / Testing Method: ISO 16000-36: 2018)

01 STEP
  • Large particles and floating materials

    Particles that exist and travel in the atmosphere.

02 STEP
  • Ammonia

    Colorless gas with a strong odor

  • Acetaldehyde

    Colorless and flammable liquid with a suffocating smell

  • Toluene

    Odorous and colorless gas heavier than the air, which may cause harm through inhalation or skin contact.

03 STEP
  • Fine dust

    Fine dusts which contains metal peroxides are smaller than PM 10 and very hazardous to the human bodies.

  • Ultrafine dust

    Since ultrafine dusts are far smaller than the regulated PM2.5, they penetrate human bodies easily but are not desecrated quickly. The metal peroxides in them are very hazardous to human bodies.

04 STEP Uni-Q Super Mega Test Result (Ion Cluster)
  • Staphylococcus aureus

    Facultative anaerobe that causes food poisoning.

  • Bacillus pyocyaneus

    Pathogens that cause an incurable infection for patients suffering from septicemia, generalized infection, chronic infection of the respiratory tract, and pancreatic fibroma.

  • Colon Bacillus

    Germs that live inside the intestines of humans and animals.

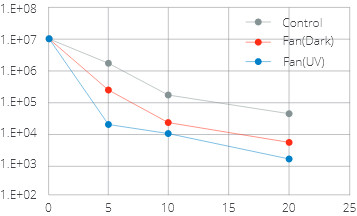

  • Evaluation of anti-viral performance of photocatalyst ball filter
    (chamber test in aerosol state)

    As a result of performance evaluation, it was confirmed that anti-viral performance was over 99.9% within 20 minutes.

  • Virus tested: Influenza Virus H3N2
Item Pollutant Test Methods Test vironment Uptime Test result
Concentration
before
operation (CFU/m³)
Concentration
before
operation (CFU/m³)
Reduction rate (%)
Floating
microorganisms
Reduction test
Coliform ISO 16000-36:2018 99.8% removed 1 hour 1.0 x 10⁴ < 10 99.9
Pseudomonas aeruginosa ISO 16000-36:2018 99.8% removed 1 hour 1.0 x 10⁴ < 10 99.9
Staphylococcus aureus ISO 16000-36:2018 100% removed 1 hour 1.1 x 10⁴ < 10 99.9
